    　　JQL Technologies表面贴装环形器(Surface Mount Circulator)

    SURFACE MOUNT CIRCULATOR BY APPLICATION
    FREQUENCY(GHz)MODEISOLATIONINS LOSSVSWROPERATINGPOWERROUNDSIZEDATA SHET
    F1~F2 GHzNUMBER(dB)MIN(dB)MAXMAXTEMP℃)AVG(W)dia(mm)PACKAGE
    RFIDAPPLICATION
    0.860 0.872 JCMD860T0872S10R21   0.35 1.20 -30~+75UPTO 10024.2 CM03
    0.860 0.960 JCM0860T0960S10R20   0.45 1.25 -30~+75UPTO 10024.2 CM03
    0.902 0.928 JCM0902T0928S10R20   0.35 1.20 -30~+75UPTO 10024.2 CM03
    0.950 0.956 JCM0950T0956S10R23   0.35 1.20 -30~+75UPTO 10024.2 CM03
    CELULAR/GSM /PCS/DCS/CDMA/UMTSAPPLICATION
    0.856 0.866 JCM0856T0866S10R21   0.35 1.20 -30~+75UPTO 10024.2 CM03
    0.858 0.878 JCM0858T0878S10R21   0.35 1.20 -30~+75UPTO 10024.2 CM03
    0.860 0.894 JCMD860T0894S10R21   0.35 1.20 -30~+75UPTO 10024.2 CM03
    0.869 0.894 JCM0869T0894S10R23   0.35 1.20 -30~+75UPTO 10024.2 CM03
    0.890 0.915 JCM0890T0915S10R21   0.35 1.20 -30~+75UPTO 10024.2 CM03
    0.920 0.960 JCM0920T0960S10R23   0.35 1.20 -30~+75UPTO 10024.2 CM03
    0.925 0.960 JCM0925T0960S10R23   0.35 1.20 -30~+75UPTO 10024.2 CM03
    0.935 0.960 JCM0935T0960S10R21   0.35 1.20 -30~+75UPTO 10024.2 CM03
    1.710 1.730 JCM1710T1730S6R21   0.35 1.20 -40~+85UPTO6018.2 CMD4
    1.805 1.825 JCM1805T1825S6R21   0.35 1.20 -40~+85UPTO 6018.2 CM04
    1.805 1.880 JCM1805T1880S6R23   0.35 1.20 -40~+85UPTO6018.2 CM04
    1.805 1.880 JCM1805T1880S10RII23   0.35 1.20 -40~+85UPTO 10024.2 CM03
    1.930 1.990 JCM1930T1990S6R23   0.35 1.20 -40~+85UPTO6018.2 CM04
    1.930 1.990 JCM1930T1990S10RII23   0.35 1.20 -40~+85UPTO 10024.2 CM03
    2.110 2.170 JCM2110T2170S6R23   0.35 1.20 -40~+85UPTO 6018.2 CM04
    2.110 2.170 JCM2110T2170S10R-Il23   0.35 1.20 -40~+85UPTO 10024.2 CM03
    WIMAXAPPLICATION
    2.300 2.400 JCM2300T2400S6R20   0.35 1.20 -40~+85UPTO6018.2 CM04
    2.300 2.500 JCM2300T2500S6R20   0.45 1.20 -40~+85UPTO 6018.2 CM04
    2.400 2.500 JCM2400T2500S6R20   0.35 1.20 -40~+85UPTO 6018.2 CM04
    2.496 2.572 JCM2496T2572S6R20   0.35 1.20 -40~+85UPTO6018.2 CMO4
    2.496 2.690 JCM2496T2690S6R20   0.45 1.20 -40~+85UPTO6018.2 CM04
    2.500 2.600 JCM2500T2600S6R20   0.35 1.20 -40~+85UPTO 6018.2 CM04
    2.500 2.700 JCM2500T2700S6R20   0.45 1.20 -40~+85UPTO 6018.2 CM04
    2.570 2.620 JCM2570T2620S6R20   0.35 1.20 -40~+85UPTO6018.2 CM04
    2.614 2.690 JCM2614T2690S6R20   0.35 1.20 -40~+85UPTO6018.2 CM04
    2.900 3.100 JCM2900T3100S6R20   0.45 1.20 -40~+85UPTO6018.2 CM04
    3.100 3.500 JCM3100T3500S6R20   0.50 1.20 -40~+85UPTO6018.2 CM04
    3.200 3.400 JCM3200T3400S6R21   0.35 1.20 -40~+85UPTO6018.2 CM04
    3.300 3.500 JCM3300T3500S6R21   0.35 1.20 -40~+86UPTO6018.3 CM04
    3.300 3.800 JCM3300T3800S6R18   0.50 1.20 -40~+85UPTO6018.2 CMD4
    3.400 3.600 JCM3400T3600S6R21   0.35 1.20 -40~+85UPTO 6018.2 CM04
    3.500 3.700 JCM3500T3700S6R21   0.35 1.20 -40~+85UPTO 6018.2 CMD4
    3.600 3.800 JCM3600T3800S6R21   0.35 1.20 -40~+85UPTO 6018.2 CMD4
    8.800 10.200 JCM8800T10K2G020 0.50 1.25:1-40~+755 6.35 CM05
    9.050 9.450 JCM9050T9450G020 0.40 1.20:1-40~+755 6.35 CM05
    9.500 10.000 JCM9500T10K0G020 0.40 1.20:1-40~+755 6.35 CM05


    　　JQL Technologies表面贴装隔离器(Surface Mount Isolator)

    SURFACE MOUNT ISOLATOR BY APPLICATION
    FREQUENCY(GHz)MODELISOLATIONINS LOSSVSWROPERATINGPOWERROUND SIZEDATA SHEET
    F1~F2 GHzNUMBER(dB)MIN(dB)MAXMAXTEMP(℃)FWD/REV(W)dia(mm)PACKAGE
    RFID APPLICATION
    0.860 0.872 JIM0860T0872S1R21 0.35 1.20 -30~+75100/524.2 IM03
    0.860 0.960 JIM0860T0960S1R20 0.45 1.25 -30~+75100/524.2 IM03
    0.902 0.928 JIM0902T0928S1R20 0.35 1.20 -30~+75100/524.2 IM03
    0.950 0.956 JIM0950T0956S1R23 0.35 1.20 -30~+75100/524.2 IM03
    CELLULAR/GSM /PCS/DCS/CDMA/UMTS APPLICATION
    0.856 0.866 JIM0856T0866S1R21 0.35 1.20 -30~+75100/524.2 IM03
    0.858 0.878 JIM0858T0878S1R21 0.35 1.20 -30~+75100/524.2 IM03
    0.860 0.894 JIM0860T0894S1R21 0.35 1.20 -30~+75100/524.2 IM03
    0.869 0.894 JIM0869T0894S1R23 0.35 1.20 -30~+75100/524.2 IM03
    0.890 0.915 JIM0890T0915S1R21 0.35 1.20 -30~+75100/524.2 IM03
    0.920 0.960 JIM0920T0960S1R23 0.35 1.20 -30~+75100/524.2 IM03
    0.925 0.960 JIM0925T0960S1R23 0.35 1.20 -30~+75100/524.2 IM03
    0.935 0.960 JIM0935T0960S1R21 0.35 1.20 -30~+75100/524.2 IM03
    1.710 1.730 JIM1710T1730S1R21 0.35 1.20 -40~+8560/518.2 IMO4
    1.805 1.825 JIM1805T1825S1R21 0.35 1.20 -40~+8560/518.2 IMO4
    1.805 1.880 JIM1805T1880S1R23 0.35 1.20 -40~+8560/518.2 IM04
    1.805 1.880 JIM1805T1880S1R-II23 0.35 1.20 -40~+85100/524.2 IM03
    1.930 1.990 JIM1930T1990S1R23 0.35 1.20 -40~+8560/518.2 IM04
    1.930 1.990 JIM1930T1990S1R-II23 0.35 1.20 -40~+85100/524.2 IM03
    2.110 2.170 JIM2110T2170S1R23 0.35 1.20 -40~+8560/518.2 IM04
    2.110 2.170 JIM2110T2170S1R-II23 0.35 1.20 40~+85100/524.2 IM03
    WIMAX APPLICATION
    2.300 2.400 JIM2300T2400S1R20 0.35 1.20 -40~+8560/518.2 IM04
    2.300 2.500 JIM2300T2500S1R20 0.45 1.20 -40~+8560/518.2 IM04
    2.400 2.500 JIM2400T2500S1R20 0.35 1.20 -40~+8560/518.2 IM04
    2.496 2.572 JIM2496T2572S1R20 0.35 1.20 -40~+8560/518.2 IM04
    2.496 2.690 JIM2496T2690S1R20 0.45 1.20 -40~+8560/518.2 IM04
    2.500 2.600 JIM2500T2600S1R20 0.35 1.20 -40~+8560/518.2 IM04
    2.500 2.700 JIM2500T2700S1R20 0.45 1.20 -40~+8560/518.2 IM04
    2.570 2.620 JIM2570T2620S1R20 0.35 1.20 -40~+8560/518.2 IM04
    2.614 2.690 JIM2614T2690S1R20 0.35 1.20 -40~+8560/518.2 IM04
    2.900 3.100 JIM2900T3100S1R20 0.45 1.20 40~+8560/518.2 IM04
    3.100 3.500 JIM3100T3500S1R20 0.50 1.20 -40~+8560/518.2 IM04
    3.200 3.400 JIM3200T3400S1R21 0.35 1.20 -40~+8560/518.2 IM04
    3.300 3.500 JIM3300T3500S1R21 0.35 1.20 -40~+8660/518.3 IM04
    3.300 3.800 JIM3300T3800S1R18 0.50 1.20 -40~+8560/518.2 IM04
    3.400 3.600 JIM3400T3600S1R21 0.35 1.20 -40~+8560/518.2 IM04
    3.500 3.700 JIM3500T3700S1R21 0.35 1.20 -40~+8560/518.2 IM04
    3.600 3.800 JIM3600T3800S1R21 0.35 1.20 40~+8560/518.2 IM04
    OTHER APPLICATION
    8.800 10.200 JIM8800T10K2G020 0.50 1.25:1-40~+755/0.56.35 IM05
    9.050 9.450 JIM9050T9450G020 0.40 1.20:1-40~+755/0.56.35 IM05
    9.500 10.000 JIM9500T10KOG020 0.40 1.20:1-40~+755/0.56.35 IMO5


    　　应用领域：

    　　无线通信(PCS、DCS、CDMA、UMTS、WiMAX、RFID)

    　　蜂窝网络(GSM、LTE、5G等)

    　　高功率射频系统

    　　主要特点：

    　　高隔离度(Isolation)、低插入损耗(Insertion Loss)

    　　高功率处理能力(High Power Handling)

    　　支持PCB回流焊(PCB Soldering Re-flow)

    　　宽工作温度范围(-40°C ~ +85°C)

    　　可定制设计(Custom Design Available)

    　　关键特性

    　　主要功能：环形器信号定向传输(3+端口);隔离器单向传输，防止反射(2端口)

    　　典型隔离度：20 ~ 23 dB

    　　插入损耗：≤0.5 dB

    　　VSWR：1.20 ~ 1.25

    　　功率处理：≤100W(环形器CM03封装，隔离器IM03封装)

    　　温度范围：-40°C ~ +85°C(部分型号)

    　　封装规格

    封装型号适用产品尺寸 (直径 mm)典型功率 (W)适用频率范围
    CM03环形器（低频率）24.2≤1000.8 ~ 2.5 GHz
    CM04环形器（高频率）18.2≤601.7 ~ 3.8 GHz
    CM05环形器（超高频）6.3558.8 ~ 10.2 GHz
    IM03隔离器（低频率）24.2100 / 50.8 ~ 2.5 GHz
    IM04隔离器（高频率）18.2May-601.7 ~ 3.8 GHz
    IM05隔离器（超高频）6.355 / 0.58.8 ~ 10.2 GHz

    JQL Technologies是一家领先的射频和微波设备制造商，公司主要设计和生产高性能射频/微波组件，包括滤波器、隔离器与环行器、定向耦合器、功率分配器/合路器、混合器、终端等。深圳市新葡萄AMG创展科技有限公司，优势代理销售JQL产品，欢迎咨询。

    推荐资讯

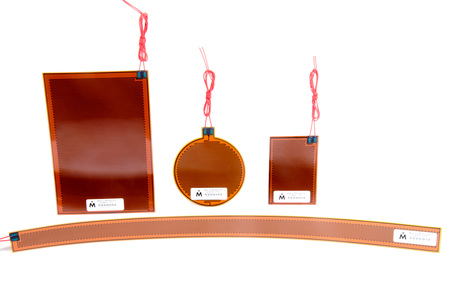

    • SmartHeat SLT自限温薄膜柔性加热器Minco
